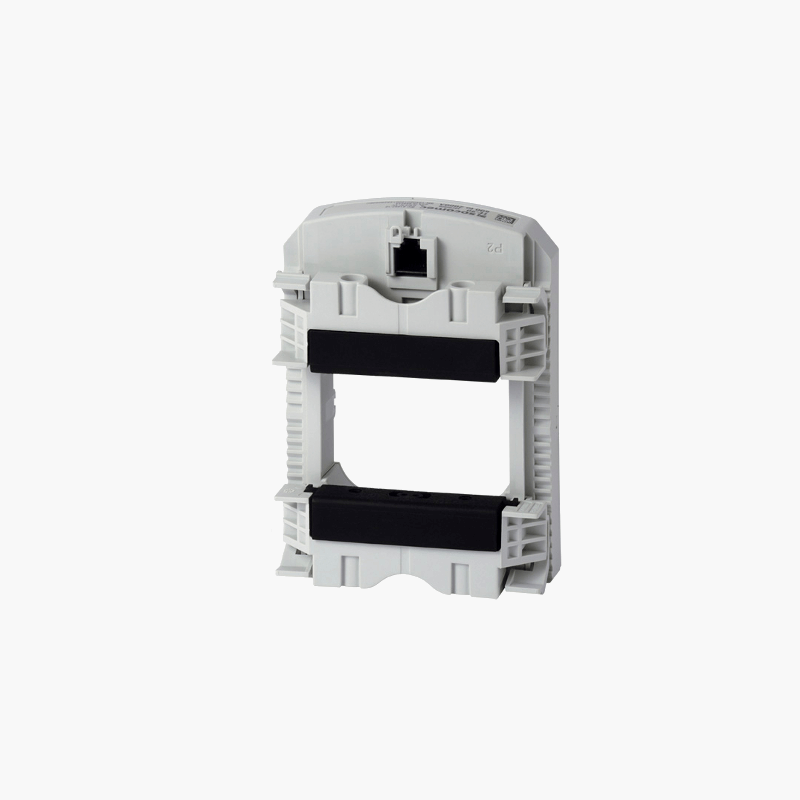

TE-90 600-2000A Sensor PartNo:48290506

Electrical characteristics

• Intermittent overload:40x In for 0.5s
• Max voltage (Phase/neutral):600V
• Rated withstand voltage:3kV

Environment

• Relative humidity:95% RH without condensation
• Storage temperature:-25 … +85 °C (IEC 60068-2-1/IEC 60068-2-2)

Environmental characteristics

• Maximum operating altitude:6560 feet / 2000 m
• Measurement category:CAT III
• Operating temperature:-10 … +70 °C / +14 °F … +158 °F (IEC 60068-2-1/IEC 60068-2-2)
• PEP ecopassport – ISO 14025:SOCO-2014-03-v1-fr, SOCO-2014-03-v1-en

Measurement characteristics

• Accuracy class:0.5 for the global measurement chain (Associated with Digiware I, DIRIS B & DIRIS A-40)
• Current measurement type:AC
• Current rating range:600-2000A
• Frequency rating:50/60 Hz
• Full measurement range:12-2400A
• Aperture:64×64 mm
• Breaker center spacing:90mm
• CT secondary connection type:RJ12
• Current Sensor Secondary type:100mV
• Current sensor type:Solid Core
